Compressed air is the invisible workhorse in many industrial facilities, powering tools, actuators, instrumentation, and control systems. But water vapor in compressed air is a persistent enemy: it condenses as liquid water or forms ice, corrodes piping and equipment, fouls product lines, and can cause process interruptions.

Dew point transmitters are a practical, high-value sensor that help teams monitor and control moisture, avoid contamination, and prevent the kind of unplanned downtime that costs time and money. This article explains how transmitters work, where to deploy them, best practices for use, and the return on investment they offer.

Why dew point matters in compressed air systems

The “dew point” is the temperature at which water vapor in the air begins to condense into liquid at a given pressure. In compressed air systems, the dew point determines whether moisture will remain as vapor or form liquid water as the compressed air cools or expands through piping, dryers, or fittings. Key failure modes linked to inadequate moisture control include:

·       Corrosion of pipes and valves, shortening equipment life.

·       Water carryover into pneumatic instrumentation and product lines, leading to contamination.

·       Freezing of moisture in cold environments, blocking lines and valves.

·       Clogged filtration and reduced downstream reliability.

Quality defects in products that require dry air (spray painting, packaging, food, pharmaceuticals).

Monitoring dew point gives plant teams actionable, quantitative information to manage dryers, drain traps, filters, and system pressure to keep moisture where it belongs: out of the process.

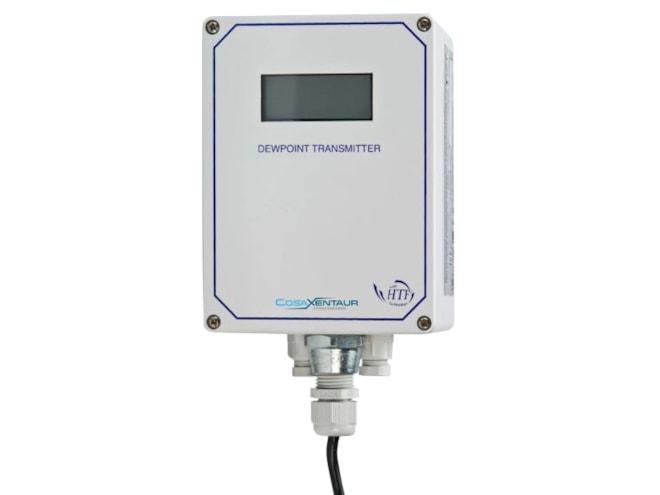

What a dew point transmitter does

A dew point transmitter continuously measures the moisture content of compressed air and outputs that measurement as an electrical signal (typically 4–20 mA, Modbus, HART, or other digital protocols). Unlike spot-check instruments or portable hygrometers, transmitters are designed for permanent installation and integration into control systems and condition-monitoring platforms.

Common measurement units include °C or °F dew point, ppmv (parts per million by volume) water, or g/m³. Modern transmitters use one of several sensing technologies (capacitive polymer sensors, chilled mirror sensors, thin-film aluminum oxide capacitors, or specialized ceramic sensors), each with tradeoffs in accuracy, response time, stability, and maintenance needs.

Types of transmitters and selection considerations

When selecting a dew point transmitter for a compressed air system, consider the following criteria:

Measurement range and accuracy: Typical compressed air dew point needs range from ambient down to −40 °Cdp or lower for instrument or cascade-dry applications. Choose a sensor whose accuracy and range match your dryer and process requirements.

Response time and stability: Fast response helps detect transients (e.g., a dryer failure) sooner. Some sensors drift and need recalibration more often.

Pressure effect: Measured dew point varies with pressure; select a transmitter that compensates for system pressure or provide pressure-corrected readings within your control system.

Output and integration: Ensure compatibility with PLCs, DCS, or building management systems — analog outputs for alarms and digital protocols (Modbus/HART) for remote diagnostics are common.

Materials and IP rating: Compressed air environments can be oily, dusty, or subject to washdown. Select appropriate IP rating and housing materials.

Temperature range and installation style: Some transmitters are process-mounted (in-line probes with thermal isolation); others use sampling probes with a small bleed line. Consider space, access, and whether continuous hot air bypass or a sampling system is preferable.

Where to install dew point transmitters

Strategic placement magnifies the value of a transmitter. Typical locations:

Downstream of the dryer: Verify dryer performance and detect dryer faults before moisture reaches critical equipment.

After dryers but before distribution: Provides a system-level view of delivered air quality.

At the critical point-of-use: For instrument air or production lines where moisture would cause immediate quality or safety issues.

Before humid-sensitive processes: For example, before paint booths, packaging lines, or analytical instruments.

For systems with multiple dryers, place transmitters at the outlets of each dryer and at the main distribution header to triangulate issues quickly.

Operational best practices

To turn sensor data into reduced downtime, follow these best practices:

Set alarms and automated responses: Use dual alarm levels — a warning for degraded dew point and a critical alarm for dryer failure. Tie alarms to automated actions (e.g., switch to backup dryer, ramp down sensitive processes).

Record and trend dew point: Continuous logging supports predictive maintenance and helps detect gradual degradation (e.g., refrigerant leaks, desiccant exhaustion).

Calibrate and maintain: Follow manufacturer calibration schedules. Some sensors require periodic calibration with saturated salt baths or reference instruments; others offer self-calibration features. Keep sampling probes clean and ensure condensate traps are functioning.

Combine with other sensors: Dew point is most informative when combined with pressure, temperature, and flow data — pressure drops or temperature changes can explain dew point excursions.

Use pressure-compensated readings: If your transmitter doesn’t compensate automatically, convert readings to standard conditions or use a pressure correction factor.

Real-world benefits and ROI

Dew point transmitters are not just sensors — they’re risk reduction tools. Benefits include:

Fewer unplanned shutdowns: Early detection of dryer failure prevents contaminated air from reaching critical equipment.

Extended equipment life: Reduced corrosion and water ingestion lowers replacement and repair costs.

Improved product quality: Dry, stable air means fewer rejects and rework.

Optimized maintenance: Trending allows replacement of desiccant or servicing of dryers only when needed, reducing preventive maintenance costs.

Energy savings: Monitoring dew point can help optimize dryer regeneration cycles and compressed air usage, improving energy efficiency.

A simple ROI example: replacing a failed pneumatic valve in a production line may cost a few thousand dollars and minutes-to-hours of downtime; preventing just one such event per year often recovers the cost of several transmitters and installation.

Pitfalls to avoid

Installing the wrong sensor type: Low-cost sensors may lack the range or stability for industrial compressed-air dew points, producing false confidence.

Ignoring pressure effects: Dew point readings without pressure context can be misleading.

Poor sampling design: Dead legs, insufficient flow across the sensor, or intermittent condensate can skew readings.

Neglecting maintenance: A transmitter left uncalibrated or with fouled probes can become a liability.

Conclusion

Dew point transmitters provide continuous, actionable insight into moisture levels in compressed air systems, insight that directly prevents contamination, corrosion, product defects, and unplanned downtime.

By selecting appropriate sensors, placing them strategically, integrating alarms and trending, and pairing readings with pressure and temperature data, operations teams gain control over an otherwise stealthy problem. The investment pays back not just in avoided repairs and downtime but in more predictable processes, better quality, and smarter maintenance planning.
