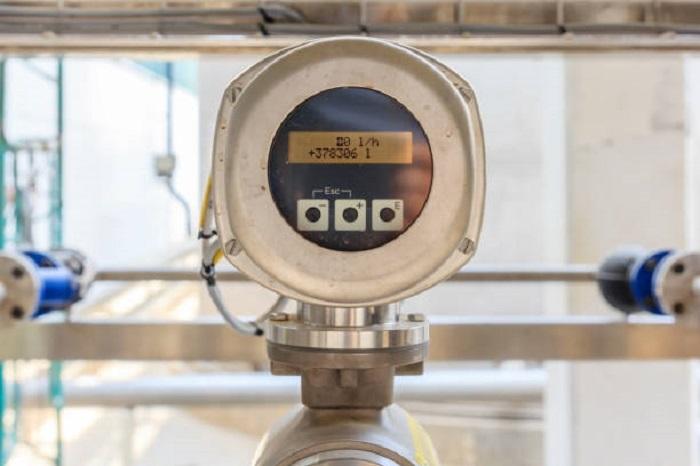

The Electromagnetic Flow Meter is one of the most widely used instruments in industrial and scientific flow measurement today. It offers accurate and reliable readings without introducing obstructions or moving parts into the flow path. These devices are based on Faraday’s Law of Electromagnetic Induction, which links the movement of a conductive fluid through a magnetic field to a measurable voltage. While this principle sounds simple, real-world conditions—especially turbulent or mixed flow patterns—present challenges that must be carefully addressed.

In industrial applications, flow conditions are rarely ideal. Fluids often pass through bends, valves, and pumps before entering the measurement section, creating turbulence and non-uniform velocity profiles. Understanding how the Electromagnetic Flow Meter performs under these conditions is vital for achieving precise measurements and maintaining system efficiency.

This article explores the physics, behavior, and engineering principles that enable electromagnetic flow meters to handle turbulent and mixed flow conditions effectively.

The Basic Principle of Electromagnetic Flow Meters

The Foundation in Faraday’s Law

An Electromagnetic Flow Meter operates on the principle discovered by Michael Faraday, which states that a voltage is induced when a conductive fluid moves through a magnetic field. The relationship can be expressed as:

E = B × D × V

Where E represents the induced voltage, B is the magnetic flux density, D is the distance between electrodes, and V is the velocity of the fluid.

The induced voltage is proportional to the flow velocity. When this voltage is measured across the electrodes and calibrated, it directly corresponds to the volumetric flow rate. Since the instrument does not rely on pressure differences or mechanical movement, it is immune to many of the wear and obstruction issues found in mechanical meters.

The Importance of a Stable Flow Profile

In ideal conditions, the flow of liquid through a pipe is fully developed and symmetrical. The velocity distribution across the pipe’s cross-section is predictable, allowing precise correlation between the induced voltage and flow rate. However, in many systems, this ideal situation does not exist. When turbulence or mixed flow occurs, the velocity profile becomes irregular, creating areas of high and low speed within the pipe.

If unaddressed, these irregularities can affect accuracy. Therefore, the Electromagnetic Flow Meter must compensate for or minimize these disturbances to maintain reliable performance.

Understanding Flow Conditions

Laminar and Turbulent Flow

Flow in a pipe can be classified into two main regimes: laminar and turbulent. In laminar flow, fluid moves in parallel layers with minimal mixing. The velocity profile is smooth and predictable. In turbulent flow, fluid particles move in chaotic patterns, producing eddies and vortices. This behavior leads to a mixed velocity distribution that is more complex to measure accurately.

Industrial fluids—especially water, slurries, and chemical mixtures—often flow turbulently due to high velocities or rough internal surfaces in pipes. In such conditions, a flow meter must provide consistent readings despite the energy fluctuations in the stream.

Mixed Flow and Transitional States

Between laminar and turbulent flow lies the transitional region, where the flow pattern alternates between smooth and chaotic behavior. Mixed flow conditions can occur when the fluid passes through elbows, valves, or pumps just before entering the flow meter. These components disturb the velocity distribution, creating swirling or asymmetrical flow.

An Electromagnetic Flow Meter positioned too close to these disturbances may experience slight variations in measurement if the velocity profile is not uniform. The design of the sensor, the choice of installation location, and the calibration process all play roles in mitigating these effects.

How Electromagnetic Flow Meters Manage Turbulence

The Role of Magnetic Field Distribution

One key advantage of an Electromagnetic Flow Meter is that it measures the average flow velocity across the entire cross-section of the pipe. The magnetic field is designed to be uniform, ensuring that the induced voltage reflects the mean velocity rather than local fluctuations.

In turbulent conditions, while the velocity at any single point in the pipe may vary momentarily, the overall average remains relatively stable. The electromagnetic measurement principle captures this average effectively, providing consistent readings even when turbulence is present.

Advanced Electrode Design and Signal Processing

Electromagnetic flow meters use electrodes that are placed diametrically opposite each other in the pipe wall. These electrodes detect the voltage generated by the moving conductive fluid. Modern designs incorporate noise reduction techniques to filter out disturbances caused by bubbles, particle motion, or uneven flow patterns.

Signal conditioning circuits further stabilize the output by averaging voltage fluctuations over time. This ensures that rapid changes due to turbulence do not produce erratic readings. In other words, while the flow may be turbulent, the measurement signal remains smooth and accurate.

Influence of Flow Conditioners and Straight Runs

Although electromagnetic flow meters can tolerate turbulence, installation practices remain important. Engineers often recommend a certain length of straight pipe before and after the meter to allow the flow to stabilize. For example, five to ten pipe diameters of straight length upstream and three to five diameters downstream are common guidelines.

In cases where installation space is limited or turbulence is unavoidable, flow conditioners can be used. These devices reshape the velocity profile, reducing asymmetry and swirl before the fluid enters the meter. By improving flow symmetry, the Electromagnetic Flow Meter can deliver more reliable measurements under mixed flow conditions.

Handling Mixed Flow and Multiphase Fluids

Dealing with Non-Uniform Velocity Profiles

Mixed flow occurs when different layers of the fluid move at different speeds or when entrained gas or solid particles are present. In these cases, the induced voltage may vary across the pipe’s cross-section. The Electromagnetic Flow Meter minimizes these variations through field uniformity and signal integration.

Electronics inside the flow meter process the average induced voltage, compensating for localized distortions. As a result, even when the flow contains irregular patterns, the output remains representative of the actual volumetric flow rate.

Influence of Conductivity and Fluid Composition

The electromagnetic principle requires the fluid to be electrically conductive. When turbulence causes mixing of fluids with different conductivities, the measured voltage can fluctuate. Advanced meters are equipped with algorithms that continuously monitor and adjust for changes in conductivity. This capability allows them to handle mixed flow where conductivity varies across the flow profile.

Managing Slurries and Suspended Solids

In industrial applications, some fluids contain suspended particles, such as in wastewater or pulp processes. These particles can affect turbulence but generally do not interfere with measurement because the magnetic field penetrates the entire fluid, not just its surface. As long as the fluid remains conductive and the particles are evenly distributed, the Electromagnetic Flow Meter maintains stable readings.

The Role of Modern Technology in Accuracy

Digital Signal Processing and Smart Electronics

Modern electromagnetic flow meters include digital signal processing systems that enhance measurement stability. These systems analyze the raw electrode signals, filter out noise, and adjust for temporary distortions caused by turbulence. The use of microprocessors allows real-time correction, ensuring that the final output remains linear and precise.

Calibration and Verification

Regular calibration ensures that even under turbulent or mixed flow conditions, the Electromagnetic Flow Meter performs consistently. Calibration is usually performed under known flow conditions to establish reference points. Some advanced meters now include automatic verification systems that check performance without removing the instrument from service, maintaining long-term reliability.

Practical Applications in Industry

Water and Wastewater Management

In water treatment and distribution, flow conditions are rarely ideal. Pumps, valves, and bends create constant turbulence. The electromagnetic design proves highly effective here because it remains accurate despite flow disturbances. Its ability to measure low-pressure loss and handle mixed flow makes it the preferred choice for municipal and industrial water systems.

Chemical and Process Industries

In chemical processes, where fluids can have varying conductivities and viscosities, turbulence is often unavoidable. The Electromagnetic Flow Meter provides dependable readings due to its resistance to pressure changes and its non-intrusive design. This ensures consistent monitoring of chemical dosing and fluid transport, even when flow is unstable.

Conclusion

Turbulent and mixed flow conditions are natural challenges in any fluid system. However, the Electromagnetic Flow Meter is uniquely equipped to manage these complexities. By measuring average velocity rather than point-specific changes, using uniform magnetic fields, and integrating sophisticated signal processing, it delivers accuracy and reliability under real-world conditions.

Its strength lies in simplicity—no moving parts, minimal pressure drop, and a measurement principle that remains stable regardless of turbulence. Whether used in clean water systems, chemical processing, or slurry transport, the electromagnetic flow meter maintains precision and efficiency.

Ultimately, its ability to handle turbulent and mixed flow conditions makes it an indispensable tool in modern fluid measurement. Through a blend of physics, engineering, and digital innovation, it continues to redefine accuracy and reliability in the world of flow metering.
